XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Mon Oct 17, 2011 8:44 pm

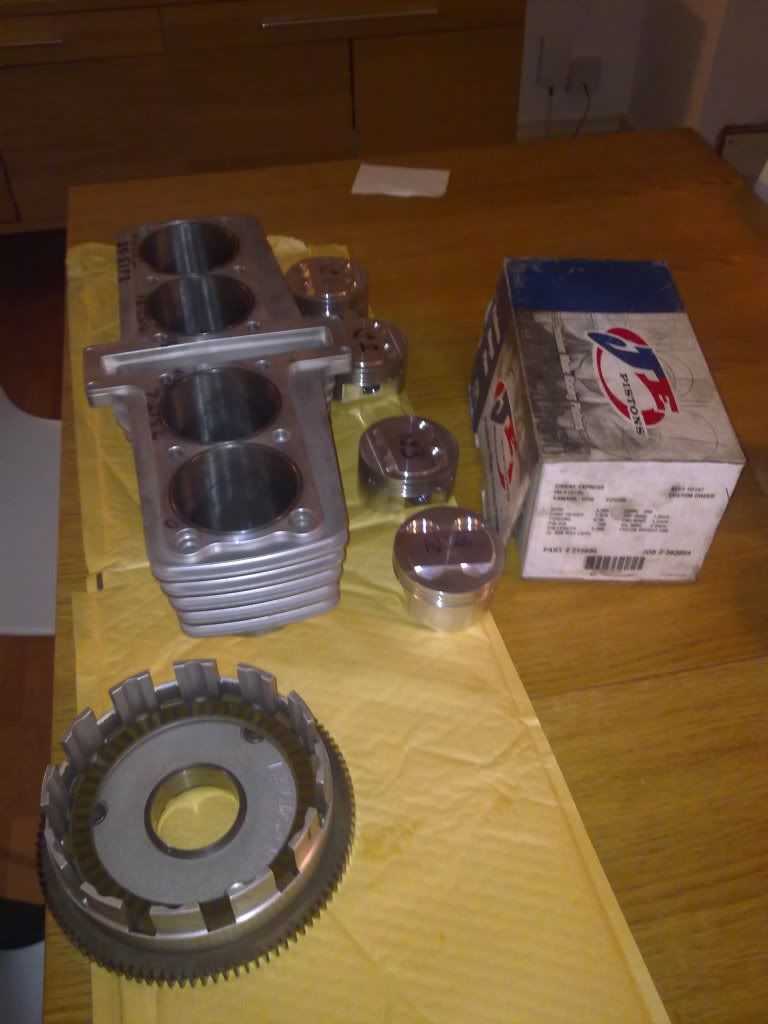

Evening all, haven't posted before because although I've had a couple of 1200 XJR's in the past, my current project might not be suitable. I thought that my trials and tribulations with the motor of the project may be of some interest here. As the title says I'm putting together a gorilla blocked 1500cc turbo motor based on the old 36Y 1100, using throttle bodies from a 2010 XJR, albeit with much bigger injectors, Carrillos, JE pistons, Falicon clutch basket with Barnett spring conversion, Upperton/Trickett 1100 +2mm in, +1mm out, head. Sparks by DYNA, injection controlled by a Megasquirt driver. A little T3 to start with.
Main issue being the lump is going in a Kat
No worries if it's inappropriate, thought the motor work would be of interest,
Cheers,
Tom

User avatar
Dieffe
Paid up...
Paid up...
Posts: 4987
Joined: Fri Jun 06, 2003 8:48 pm
Antispam - What is 3 x 12?: 36
Location: Wirral, Merseyside - not far from the Tap
Contact:

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Dieffe » Mon Oct 17, 2011 8:48 pm

Excellent, you must keep us posted. 8)
All opinions in the above post are totally irrelevant and any offence caused to any person or persons is wholly intentional.

Havoc
Registered User
Posts: 36
Joined: Sat Nov 20, 2010 9:25 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Mon Oct 17, 2011 8:55 pm

Appologies, I seem to have posted this twice, not sure how that happened :drunk:

User avatar
Lampy
Chairman
Chairman
Posts: 8214
Joined: Fri Nov 22, 2002 10:54 pm
Antispam - What is 3 x 12?: 36
Location: Meltham west yorks

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Lampy » Mon Oct 17, 2011 8:58 pm

8) liking this a lot Havoc keep the progress reports coming :thumbs:
SO MANY LAMPOSTS...........so little time . . . . STUPID PLACE TO PUT A WALL WASNT IT !!!!!
OH DEER !!!!

chairman@yamahaxjrownersclub.com

Havoc
Registered User
Posts: 36
Joined: Sat Nov 20, 2010 9:25 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Mon Oct 17, 2011 9:12 pm

Just waiting on gudgeon pins and slotted cam wheels then the motor can go together. Here's the head..



It's the set up I thought you chaps would be interrested in. Hopefully up and running this side of Xmas, will keep you posted.

User avatar
Lampy
Chairman
Chairman
Posts: 8214
Joined: Fri Nov 22, 2002 10:54 pm
Antispam - What is 3 x 12?: 36
Location: Meltham west yorks

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Lampy » Mon Oct 17, 2011 9:26 pm

Havoc wrote:Appologies, I seem to have posted this twice, not sure how that happened :drunk:

Sorted :thumbs:
SO MANY LAMPOSTS...........so little time . . . . STUPID PLACE TO PUT A WALL WASNT IT !!!!!
OH DEER !!!!

chairman@yamahaxjrownersclub.com

User avatar
RFdemon
Moderator
Moderator
Posts: 1808
Joined: Sun Apr 05, 2009 4:26 pm
Antispam - What is 3 x 12?: 48
Location: Gloucester

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by RFdemon » Mon Oct 17, 2011 9:50 pm

Keep posting fella. I love this kind of stuff. :thumbs: :thumbs: :thumbs:
If hitting it with a hammer doesn't work, it must be electrical.

Modified motorcycles? http://disturbingthepeace.co.uk

2004 XJR1300 in black (of course!)
1999 4XV R1 in Kenny Roberts colours.

User avatar
sharky
Registered User
Posts: 3145
Joined: Thu Oct 07, 2004 11:18 pm
Antispam - What is 3 x 12?: 48
Location: lincolnshire

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by sharky » Mon Oct 17, 2011 10:46 pm

Looks fun :twisted:

Just be aware that the clutch lock up kit will eat into the Barnett face plate ;-)
ride it like ya stole it

User avatar
uncle les
Paid up...
Paid up...
Posts: 732
Joined: Sat Feb 27, 2010 5:46 pm
Antispam - What is 3 x 12?: 36
Location: rotherham

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by uncle les » Tue Oct 18, 2011 8:07 am

Keep the posts coming,very intereresting :respekt: Les
The cider made me do it

falcore
Registered User
Posts: 27
Joined: Mon Jul 04, 2011 10:27 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by falcore » Tue Oct 18, 2011 8:48 am

Looks good dude!!!!

Sent from my GT-I9100 using Tapatalk

Havoc
Registered User
Posts: 36
Joined: Sat Nov 20, 2010 9:25 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Tue Oct 18, 2011 9:16 am

sharky wrote:Looks fun :twisted:

Just be aware that the clutch lock up kit will eat into the Barnett face plate ;-)
Going to have to live with that I think as the construction of the plate makes inserting steel buttons tricky. I have been mostly dragging GSXR's with the button inserts sorted by PhysclWorks, this is all new. Something to deal with at a later date :scratch:

User avatar
Mick SP
Paid up...
Paid up...
Posts: 4018
Joined: Thu May 27, 2010 2:29 pm
Antispam - What is 3 x 12?: 36
Location: Oxon

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Mick SP » Tue Oct 18, 2011 10:31 am

Cracking job mate, look forward to seeing more of the build. You must be a very rich man :lol: :lol:
Junction 8, Junction 8, Junction 8 :lol:

User avatar
hairy
Paid up...
Paid up...
Posts: 8325
Joined: Mon Sep 29, 2003 7:25 pm
Antispam - What is 3 x 12?: 48
Location: Luton
Contact:

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by hairy » Tue Oct 18, 2011 2:32 pm

Looking good Havoc :thumbs:
New and used XJR parts :arrow: http://xjrparts.co.uk
INDEPENDENCE DAY...31 January 2020 :D

User avatar
sharky
Registered User
Posts: 3145
Joined: Thu Oct 07, 2004 11:18 pm
Antispam - What is 3 x 12?: 48
Location: lincolnshire

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by sharky » Tue Oct 18, 2011 3:00 pm

Havoc wrote:
sharky wrote:Looks fun :twisted:

Just be aware that the clutch lock up kit will eat into the Barnett face plate ;-)
Going to have to live with that I think as the construction of the plate makes inserting steel buttons tricky. I have been mostly dragging GSXR's with the button inserts sorted by PhysclWorks, this is all new. Something to deal with at a later date :scratch:


yeah, it'd be good to see if you come up with something bud 8)
ride it like ya stole it

User avatar
Hooligan
Paid up...
Paid up...
Posts: 1098
Joined: Sun Jan 13, 2008 11:12 pm

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Hooligan » Tue Oct 18, 2011 7:12 pm

looking great havoc, well done :thumbs: love the katanas when they've been properly modified ;-)
what front ends going in it havoc?

Havoc
Registered User
Posts: 36
Joined: Sat Nov 20, 2010 9:25 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Tue Oct 18, 2011 8:00 pm

Front end is FZR1000 Genesis with uprated springs and R1 callipers. Genesis to keep the rightway up fork look. Kept the standard Genesis yolks but pressed in a stem from a GSX1100F Powerscreen to fit the Kat headstock, again to keep a simple Katana look. Front end was straight out of the original FJ1100 I used to race.


Had the old FJ since I brought it in from Italy as a scabby runaround in '94

Havoc
Registered User
Posts: 36
Joined: Sat Nov 20, 2010 9:25 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Tue Oct 18, 2011 8:13 pm

Mick SP wrote:Cracking job mate, look forward to seeing more of the build. You must be a very rich man :lol: :lol:
Definately not rich Mick, although I've spent more on this than I usually do on a project. Thought I'd do it right for a change rather than hunting for 2nd hand bits which, to put a hopefully 300+bhp Yam motor together, are very thin on the ground over here. Total budget for a show finished and fully functioning road/race bike will be about 2/3 the cost of a new XJR. I haven't included the original cost of the FJ (or the mods I did on it) as I've had it forever.

Havoc
Registered User
Posts: 36
Joined: Sat Nov 20, 2010 9:25 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Sat Oct 29, 2011 8:47 pm

Bit of progress. On it's wheels and empty motor in to measure up for the turbo up pipe. Got some mega injectors on their way for the XJR throttle bodies, should be good for over 400bhp, but not with this turbo...



Crank and rods with SEP in Kegworth for a once over but not expecting any issues. The gear clusters they were happy with so there's a few quid saved (can't be 'undercut' because of design, said it would be fine as long as my airshift/kill etc was cock on, he knows his stuff so happy with that)

User avatar
Hooligan
Paid up...
Paid up...
Posts: 1098
Joined: Sun Jan 13, 2008 11:12 pm

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Hooligan » Sat Oct 29, 2011 11:08 pm

Havoc wrote:Bit of progress. On it's wheels and empty motor in to measure up for the turbo up pipe. Got some mega injectors on their way for the XJR throttle bodies, should be good for over 400bhp, but not with this turbo...



Crank and rods with SEP in Kegworth for a once over but not expecting any issues. The gear clusters they were happy with so there's a few quid saved (can't be 'undercut' because of design, said it would be fine as long as my airshift/kill etc was cock on, he knows his stuff so happy with that)
hi havoc ,looking good, like the way the manifold on 1 and 4 go around the frame, and a nice bit of welding :thumbs:, i've also stuck to the retro looking forks so i opted for the thunderace front end, just think it looks better with twin rear shocks rather than fitting upside downs

Havoc
Registered User
Posts: 36
Joined: Sat Nov 20, 2010 9:25 pm
Antispam - What is 3 x 12?: 36

Re: XJR/FJ hybrid 1500cc injected turbo project

Post by Havoc » Sun Oct 30, 2011 12:02 am

Cartridge front end on the Ace and the little Cat are the bollox, that's next on the list but can build up with this Genesis front as the sizes work. :)
